Advanced Visualizations for MID Importance

Extends midr::ggmid to provide modern distribution plots for Maximum Interpretation Decomposition (MID) feature importance. Added types include sina, beeswarm, and violin plots.

Usage

# S3 method for class 'mid.importance'
ggmid(
  object,
  type = NULL,
  theme = NULL,
  terms = NULL,
  max.nterms = 30,
  scale = NULL,
  method = NULL,
  ...
)

Arguments

object

a "mid.importance" object created by midr::mid.importance.

type

a character string specifying the plot type. In addition to standard types ("barplot", "boxplot", "dotchart", "heatmap"), this extended method supports "violinplot", "sinaplot", and "beeswarm".

theme

a character string for the visual theme.

terms

a character vector of terms to include. If NULL (default), all terms are shown.

max.nterms

an integer. The maximum number of terms to display.

scale

a character string for sina and violin plots. Default is "width", ensuring all categories have equal maximum width regardless of density.

method

a character string specifying the distribution algorithm. Default is "density" for sinaplot and "frowney" for beeswarm.

...

additional arguments passed to the underlying geoms.

Value

a "ggplot" object.

Details

This function wraps the S3 method of midr::ggmid for "mid.importance" objects and replaces the primary layer with modern distribution geoms when type is one of the extended options.

Examples

data(diamonds, package = "ggplot2")
set.seed(42)
idx <- sample(nrow(diamonds), 5e3)
mid <- midr::interpret(price ~ (carat + cut + color + clarity)^2, diamonds[idx, ])
#> 'model' not passed: response variable in 'data' is used
imp <- midr::mid.importance(mid)

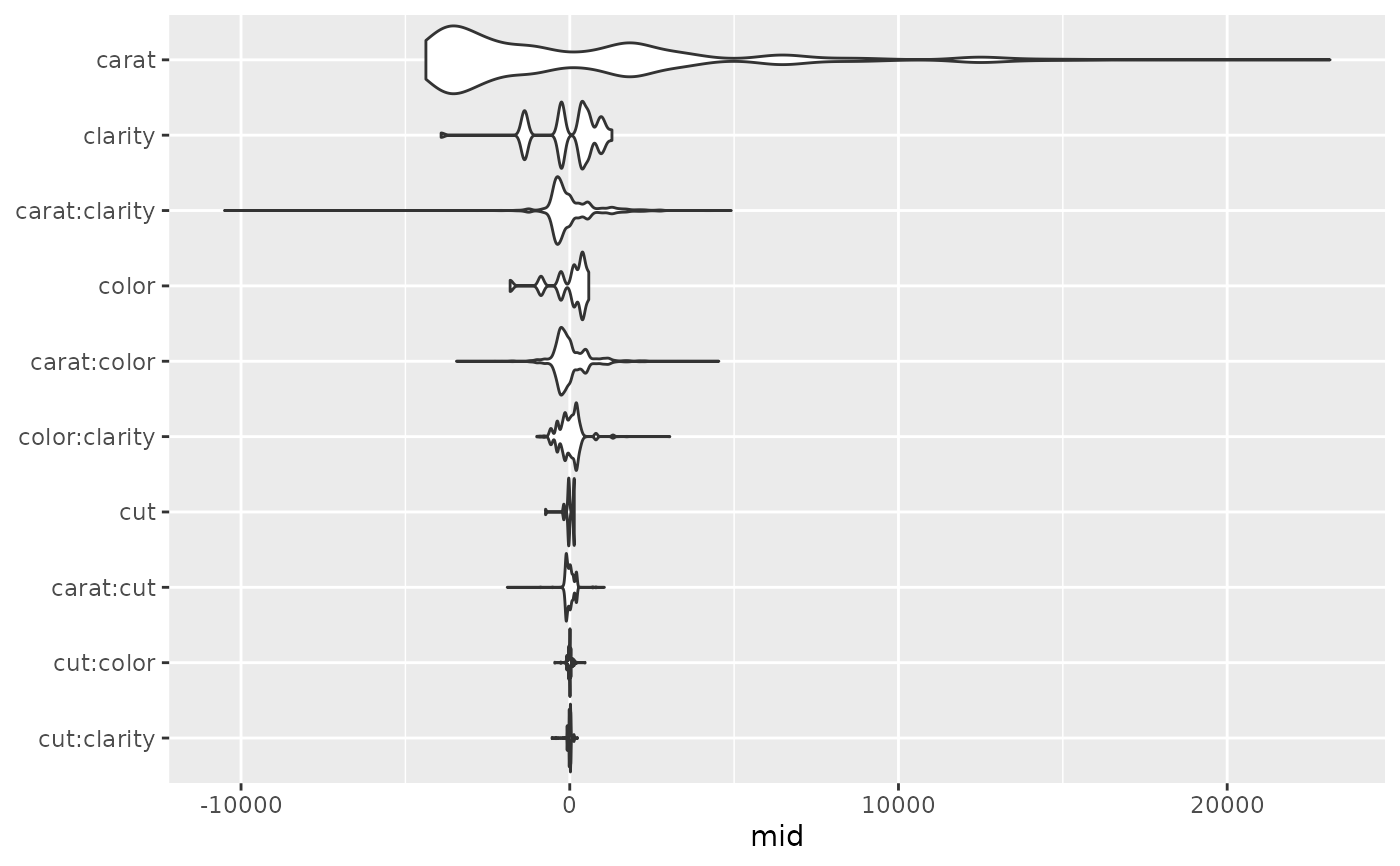

# Create a violin plot
midr::ggmid(imp, type = "violinplot")
#> Warning: Ignoring unknown parameters: `terms`

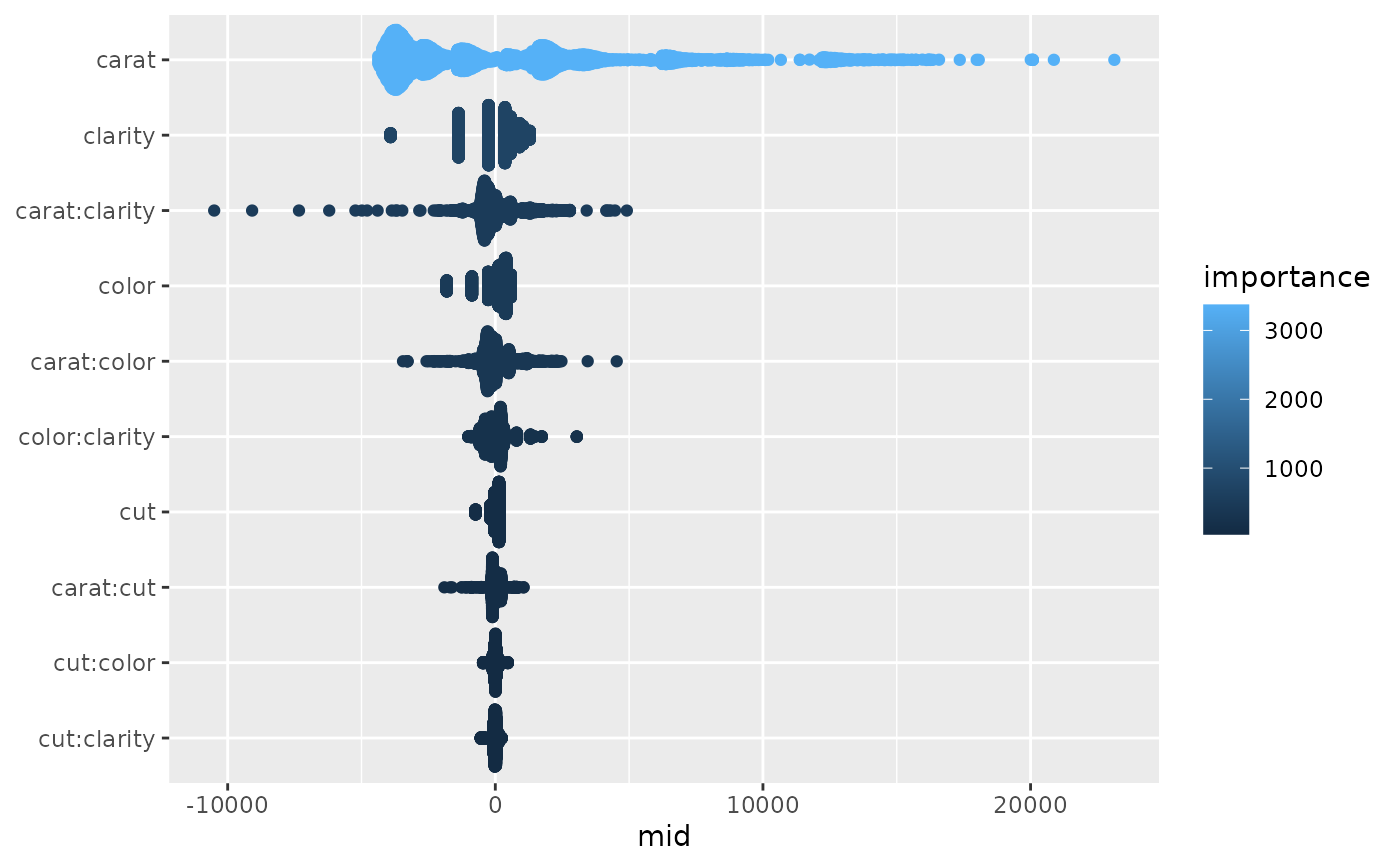

# Create a beeswarm plot
midr::ggmid(imp, type = "beeswarm", theme = "bluescale")
#> Warning: Ignoring unknown parameters: `terms`

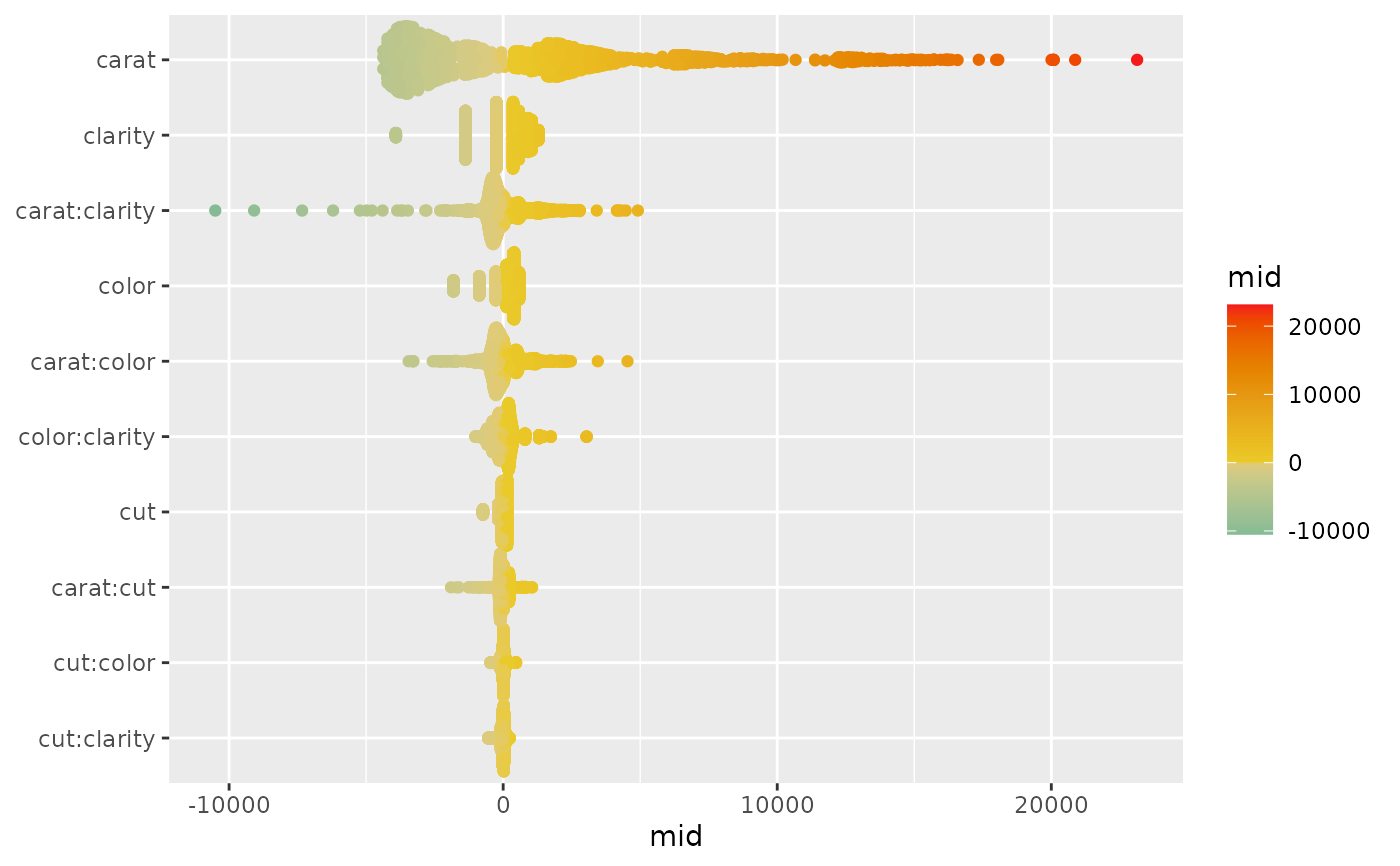

# Create a sina plot
midr::ggmid(imp, type = "sinaplot", theme = "Zissou 1")
#> Warning: Ignoring unknown parameters: `terms`
