Extends midr::ggmid to provide modern distribution plots for Maximum Interpretation Decomposition (MID) feature importance.
Added types include sina, beeswarm, and violin plots.
Usage
# S3 method for class 'midimp'
ggmid(object, type = NULL, theme = NULL, terms = NULL, max.nterms = 30, ...)Arguments
- object
a "midimp" object created by
midr::mid.importance.- type
a character string specifying the plot type. In addition to standard types ("barplot", "boxplot", "dotchart", "heatmap"), this extended method supports "violinplot", "sinaplot", and "beeswarm".
- theme
a character string for the visual theme.
- terms
a character vector of terms to include. If
NULL(default), all terms are shown.- max.nterms
an integer. The maximum number of terms to display.
- ...
additional arguments passed to the underlying geoms.
Details
This function wraps the S3 method of midr::ggmid for "midimp" objects and replaces the primary layer with modern distribution geoms when type is one of the extended options.
Examples
mid <- midr::interpret(Ozone ~ .^2, airquality, lambda = .5)
#> 'model' not passed: response variable in 'data' is used
imp <- midr::mid.importance(mid)

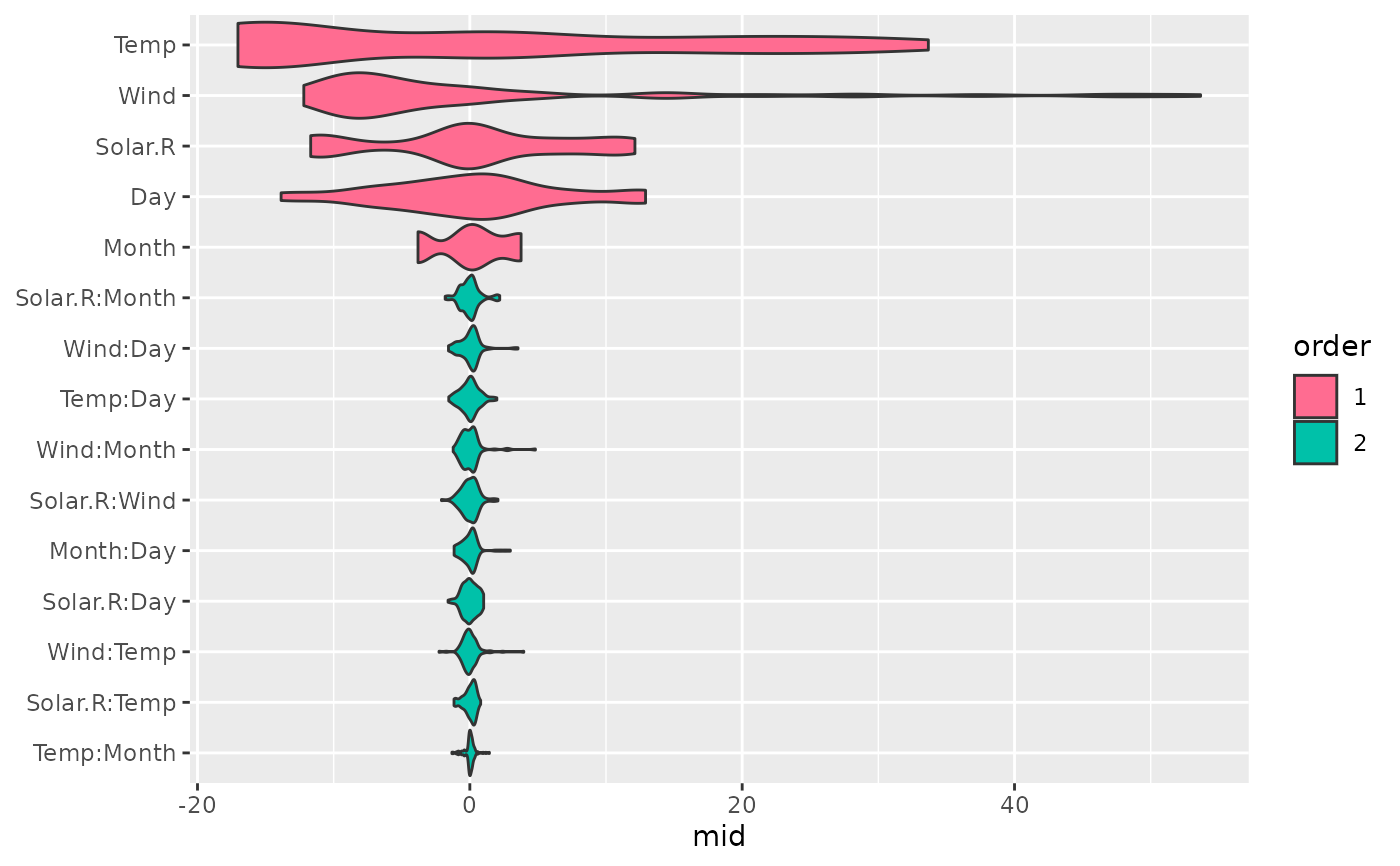

# Create a violin plot
midr::ggmid(imp, type = "violinplot", theme = "HCL")

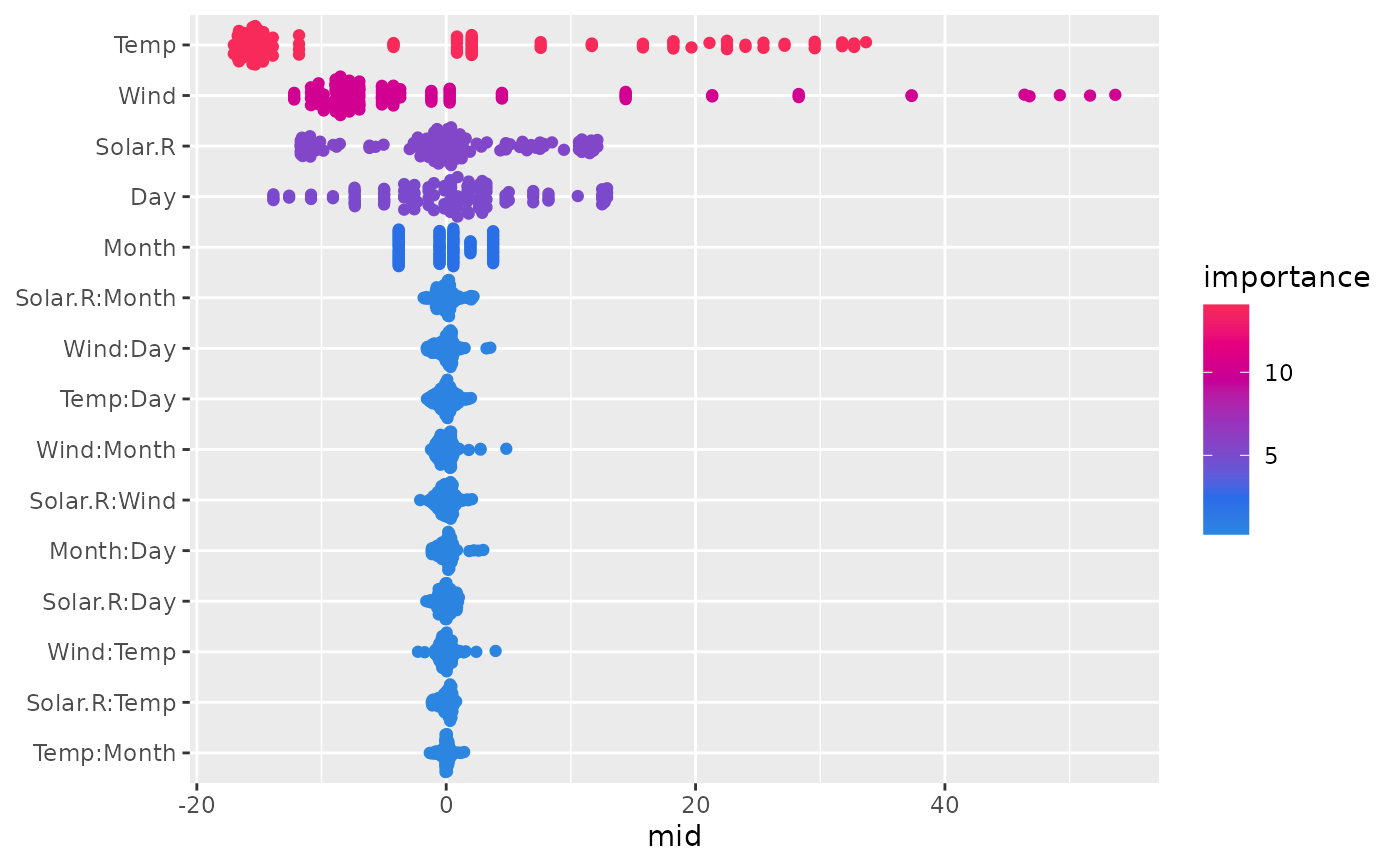

# Create a beeswarm plot
midr::ggmid(imp, type = "beeswarm", theme = "shap")

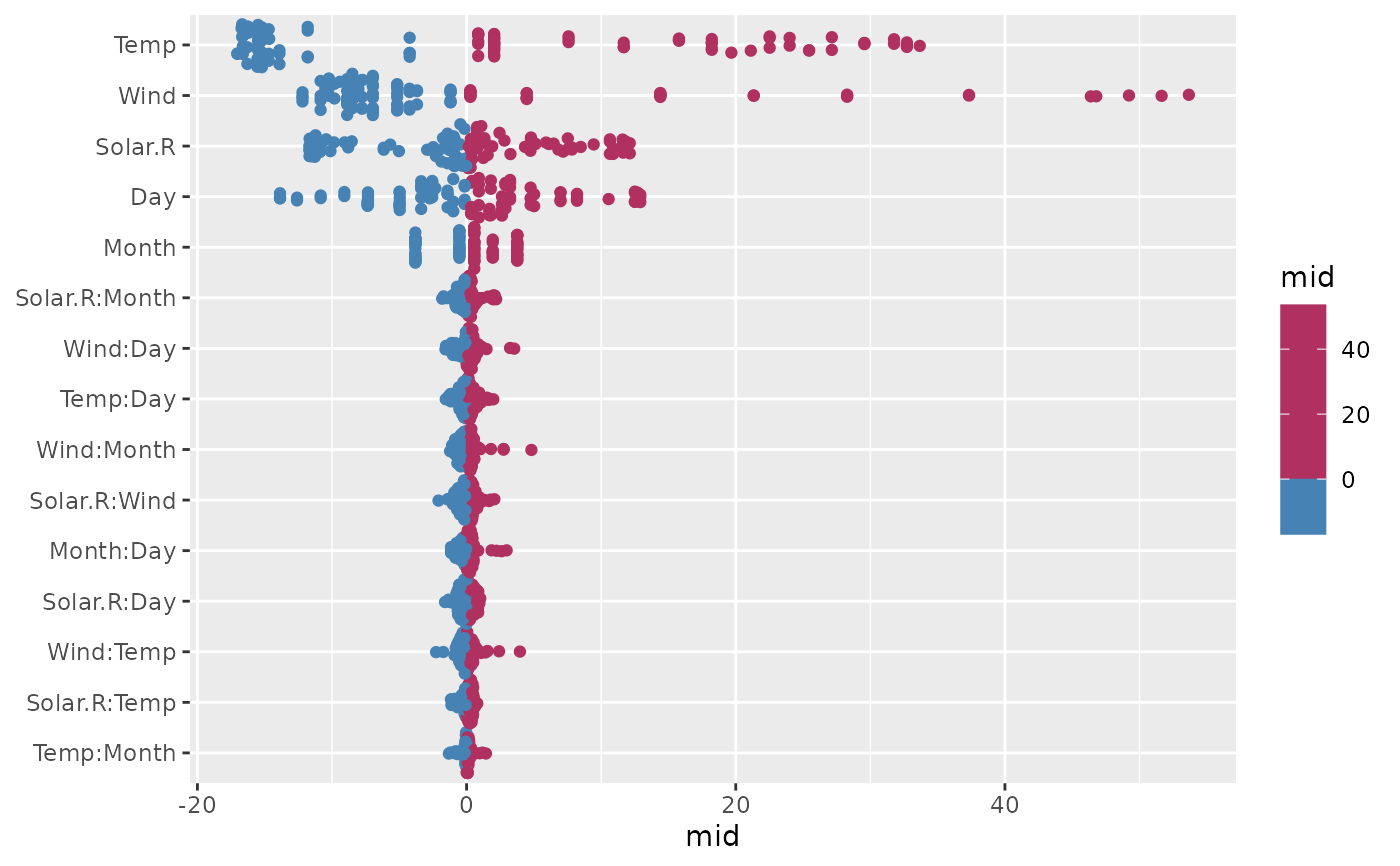

# Create a sina plot
midr::ggmid(imp, type = "sinaplot", theme = "bicolor")
