Interpretation of Survival Models

This article presents examples of interpreting survival models using the midr package.

As a fundamental approach to interpreting survival models, midr first utilizes a prediction function to output a matrix of survival probabilities, $Y_{it}=S_t(\mathbf{x}_i)$, for each observation $i$ at each time point $t$, based on the model and the data with the pred.fun (which defaults to get.yhat()). It then constructs a series of MID models targeting each column of this predicted matrix (i.e., the survival probability for each survival time $S_t$).

The resulting collection of models across multiple time points is aggregated into an object of class “midrib”. This object is structured to internally share computational resources, such as the design matrix for the calculation of effects. This architecture enables the efficient and smooth extraction of feature effects as they evolve over time.

# load required packages
library(midr)
library(ggplot2)
library(patchwork)

Cox Proportional Hazard Model

library(survival)
fit_cox <- coxph(
  Surv(time, status) ~ .,
  data = veteran
)

mid_cox <- interpret(
  Surv(time, status) ~ .,
  data = veteran,
  model = fit_cox,
  lambda = .1
)

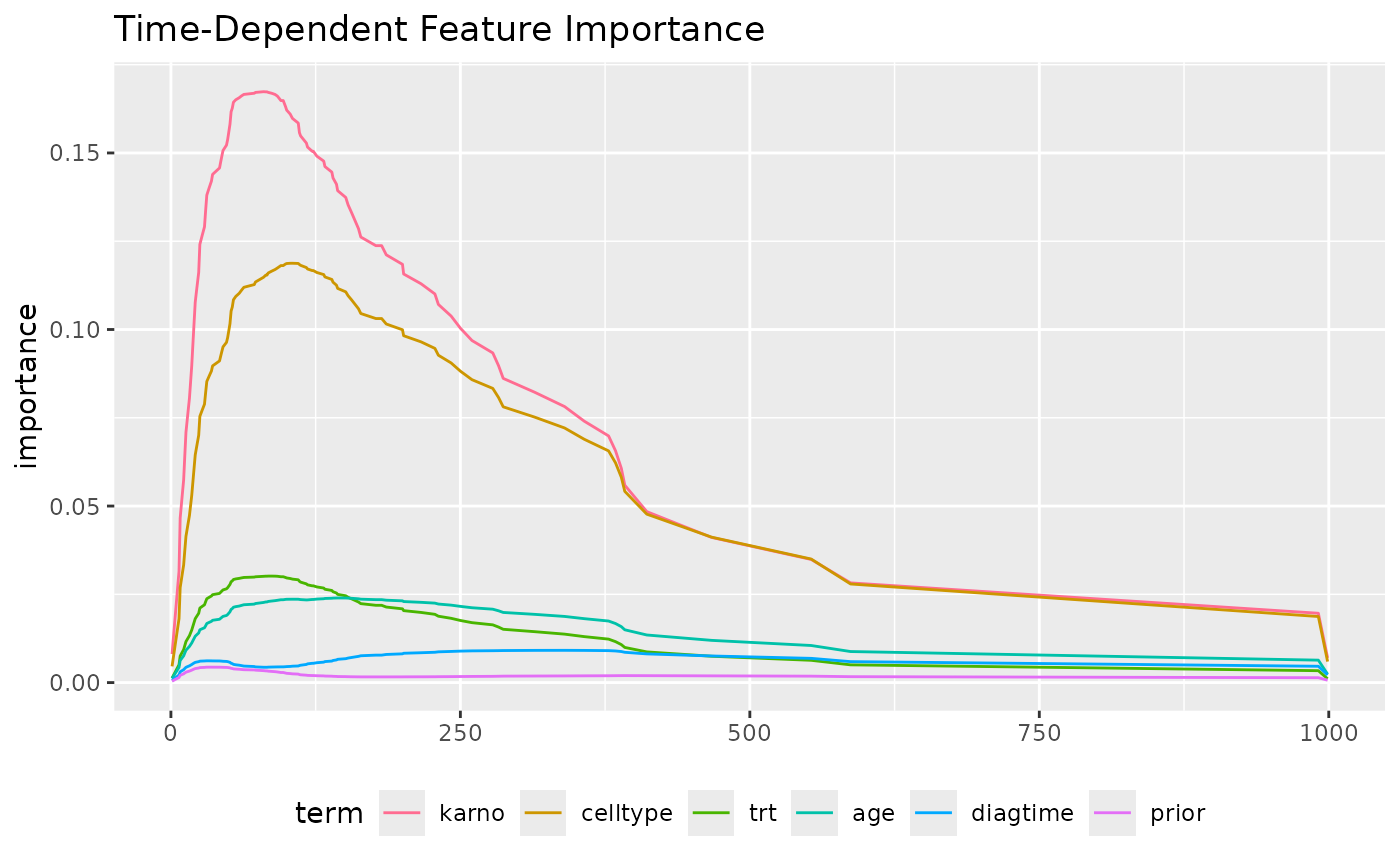

imp_cox <- mid.importance(mid_cox)

p1 <- ggmid(imp_cox, type = "series") +
  theme(legend.position = "bottom") +
  guides(color = guide_legend(nrow = 1)) +
  labs(subtitle = "time-dependent feature importance")
p2 <- ggmid(mid_cox, term = "karno", type = "series", intercept = TRUE) +
  theme(legend.position = "bottom") +
  labs(subtitle = "feature effect of 'karno'")
p3 <- ggmid(mid_cox, term = "celltype", type = "series", intercept = TRUE) +
  theme(legend.position = "bottom") +
  guides(color = guide_legend(nrow = 1)) +
  labs(subtitle = "feature effect of 'celltype'")

p1 / (p2 + p3)

Parametric Survival Model

library(flexsurv)
fit_flex <- flexsurvreg(
  Surv(time, status) ~ .,
  data = veteran,
  dist = "weibull"
)

mid_flex <- interpret(
  Surv(time, status) ~ .,
  data = veteran,
  model = fit_flex,
  lambda = .1
)

imp_flex <- mid.importance(mid_flex)

p1 <- ggmid(imp_flex, type = "series") +
  theme(legend.position = "bottom") +
  guides(color = guide_legend(nrow = 1)) +
  labs(subtitle = "time-dependent feature importance")
p2 <- ggmid(mid_flex, term = "karno", type = "series", intercept = TRUE) +
  theme(legend.position = "bottom") +
  labs(subtitle = "feature effect of 'karno'")
p3 <- ggmid(mid_flex, term = "celltype", type = "series", intercept = TRUE) +
  theme(legend.position = "bottom") +
  guides(color = guide_legend(nrow = 1)) +
  labs(subtitle = "feature effect of 'celltype'")

p1 / (p2 + p3)

Model Based Boosting

library(mboost)
fit_mboost <- glmboost(
  Surv(time, status) ~ .,
  data = veteran,
  family = CoxPH()
)

mid_mboost <- interpret(
  Surv(time, status) ~ .,
  data = veteran,
  model = fit_mboost,
  lambda = .1
)

imp_mboost <- mid.importance(mid_mboost)

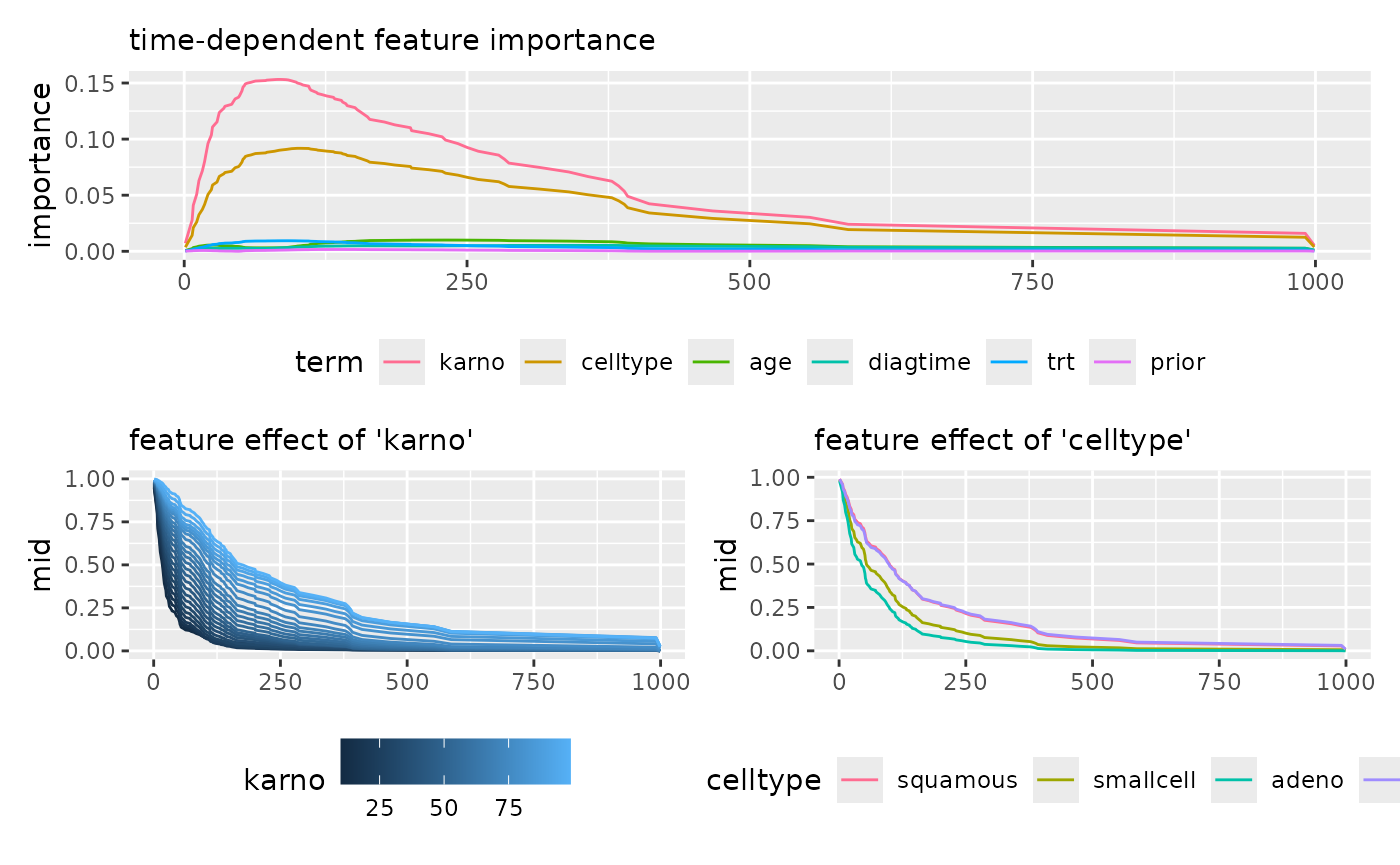

p1 <- ggmid(imp_mboost, type = "series") +
  theme(legend.position = "bottom") +
  guides(color = guide_legend(nrow = 1)) +
  labs(subtitle = "time-dependent feature importance")
p2 <- ggmid(mid_mboost, term = "karno", type = "series", intercept = TRUE) +
  theme(legend.position = "bottom") +
  labs(subtitle = "feature effect of 'karno'")
p3 <- ggmid(mid_mboost, term = "celltype", type = "series", intercept = TRUE) +
  theme(legend.position = "bottom") +
  guides(color = guide_legend(nrow = 1)) +
  labs(subtitle = "feature effect of 'celltype'")

p1 / (p2 + p3)

Random Survival Forest

library(randomForestSRC)
fit_rsf <- rfsrc(
  Surv(time, status) ~ .,
  data = veteran
)

mid_rsf <- interpret(
  Surv(time, status) ~ .,
  data = veteran,
  model = fit_rsf,
  lambda = .1
)

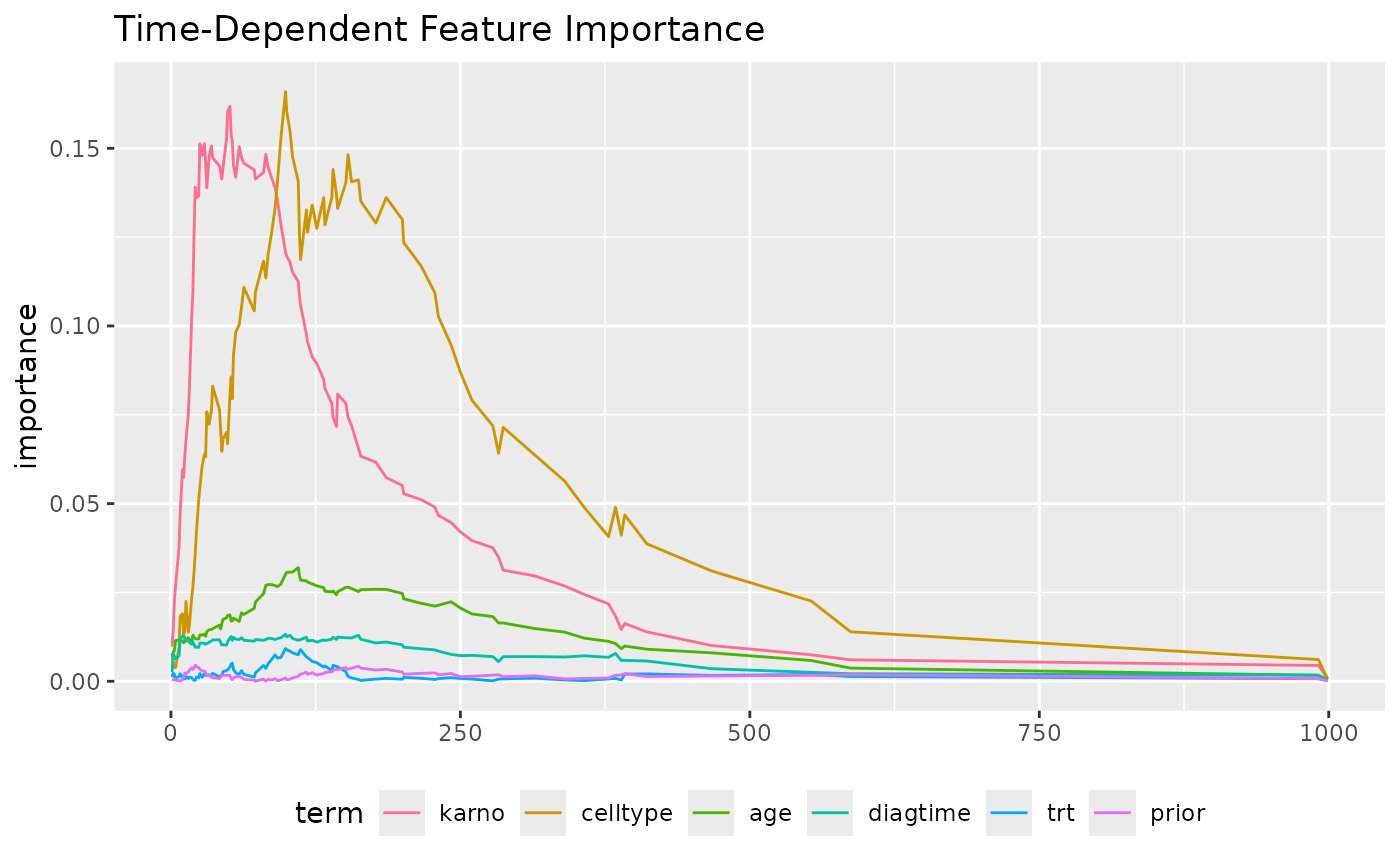

imp_rsf <- mid.importance(mid_rsf)

p1 <- ggmid(imp_rsf, type = "series") +
  theme(legend.position = "bottom") +
  guides(color = guide_legend(nrow = 1)) +
  labs(subtitle = "time-dependent feature importance")
p2 <- ggmid(mid_rsf, term = "karno", type = "series", intercept = TRUE) +
  theme(legend.position = "bottom") +
  labs(subtitle = "feature effect of 'karno'")
p3 <- ggmid(mid_rsf, term = "celltype", type = "series", intercept = TRUE) +
  theme(legend.position = "bottom") +
  guides(color = guide_legend(nrow = 1)) +
  labs(subtitle = "feature effect of 'celltype'")

p1 / (p2 + p3)

Oblique Random Survival Forest

library(aorsf)
fit_orsf <- orsf(
  Surv(time, status) ~ .,
  data = veteran
)

mid_orsf <- interpret(
  Surv(time, status) ~ .,
  data = veteran,
  model = fit_orsf,
  lambda = .1
)

imp_orsf <- mid.importance(mid_orsf)

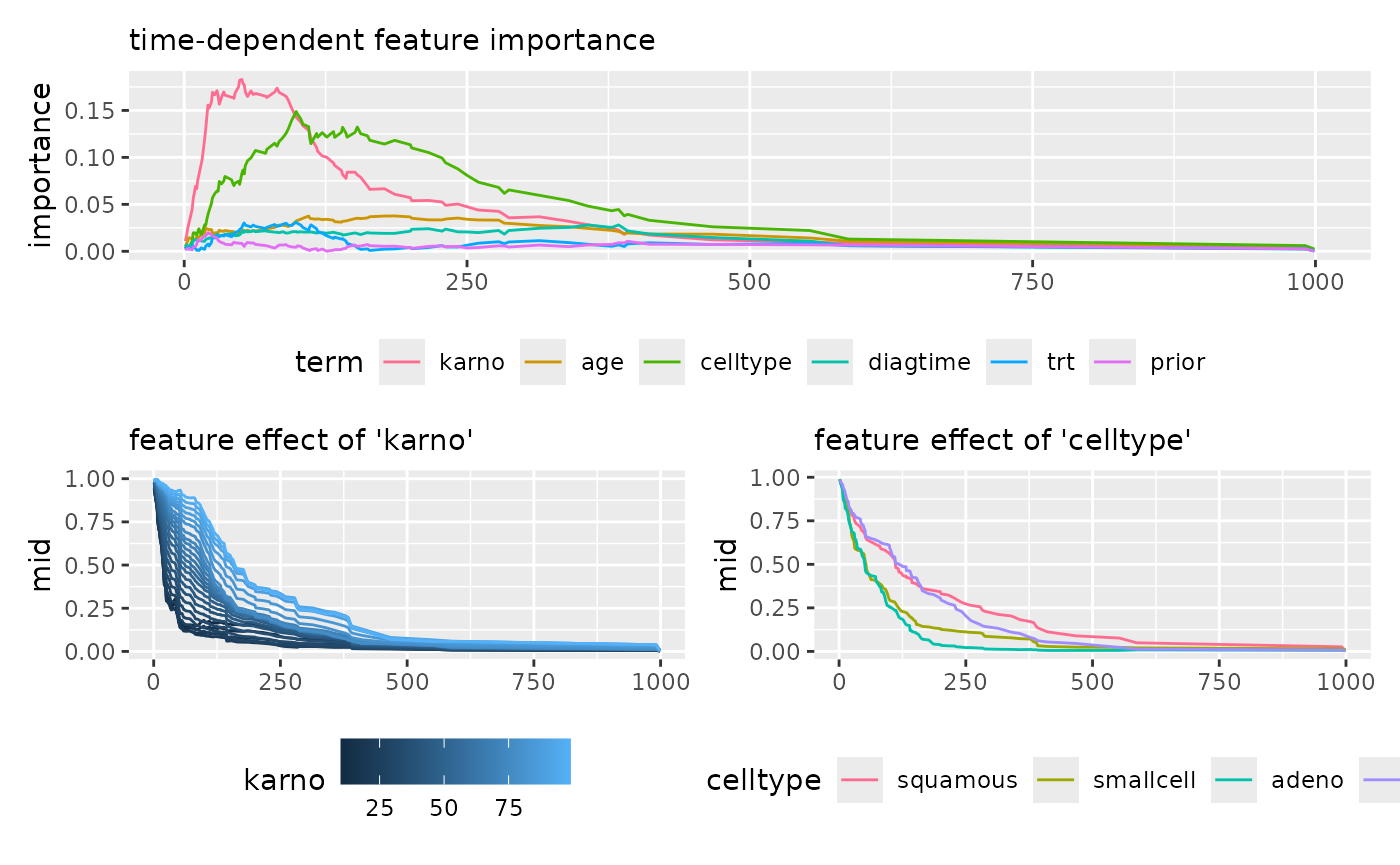

p1 <- ggmid(imp_orsf, type = "series") +
  theme(legend.position = "bottom") +
  guides(color = guide_legend(nrow = 1)) +
  labs(subtitle = "time-dependent feature importance")
p2 <- ggmid(mid_orsf, term = "karno", type = "series", intercept = TRUE) +
  theme(legend.position = "bottom") +
  labs(subtitle = "feature effect of 'karno'")
p3 <- ggmid(mid_orsf, term = "celltype", type = "series", intercept = TRUE) +
  theme(legend.position = "bottom") +
  guides(color = guide_legend(nrow = 1)) +
  labs(subtitle = "feature effect of 'celltype'")

p1 / (p2 + p3)
